VEVOR Vinyl Cutter 53 Inch Vinyl Cutter Machine Semi-Automatic DIY Vinyl Printer Cutter Machine Manual Positioning Sign Cutting with Floor Stand Signmaster Software

Price: $545.87
(as of May 18,2023 15:28:36 UTC – Details)

Product Description

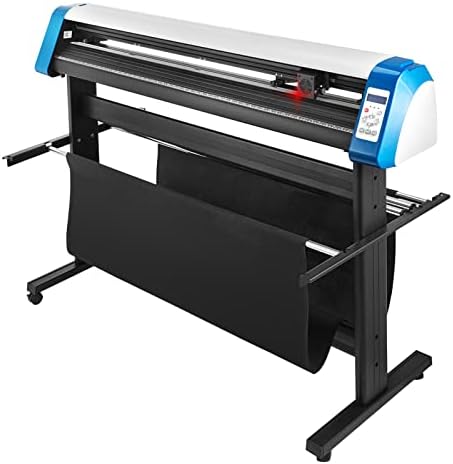

53-Inch Semi-Automatic Contour Vinyl Cutter Plotter

This 53″ Professional Vinyl Cutting Plotter with floor stand comes with easy-to-use Design and SIGNMASTER software, which allows you to cut professional customized designs and signs with your cutting machines, giving you the ability to use your fonts, import custom artwork and draw your own shapes!

NOT compatible with IOS system！

Cutting CapacityStrong StabilityDigital ControlHigh Compatibility

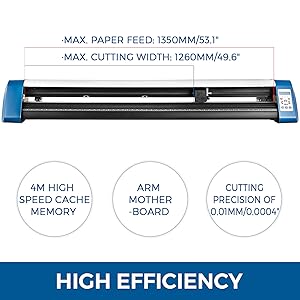

High Efficiency

The maximum paper feed is 1350mm (53.1″), and the maximum cutting width is 1260mm (49.6″). With ARM motherboard and stepper motors, cutting precision of +/-0.01mm (0.0004″), and paper feed precision of 3m (118″). With 4M high-speed cache memory, DM/PL, HP/GL language.

Semi-automatic Cutting

With the optical eye, laser pointer and casting pressure carriage, supporting semi-automatic contour cutting, which calls for manual positioning. With Signmaster software, it can achieve more accurate and high-quality cutting.

Well-Designed Details

4 adjustable double spring pinch-rollers and high precision pressing wheels to ensure the anti-deviation of paper feed by long distance. With scale line for intuitive and accurate operation, LED strip lights for illuminating and caster wheels for convenient movement.

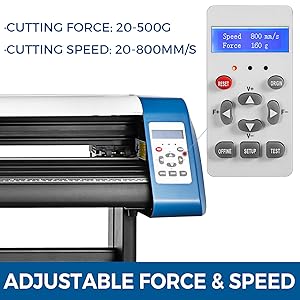

Adjustable Force & Speed

The digital control panel allows adjustment of cutting force and speed. Cutting pressure with 20-500g adjustable, and cutting speed with 20-800mm/s adjustable. With backlight LCD display for direct display of the working process.

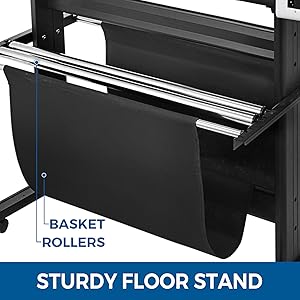

Sturdy Floor Stand

Structured with heavy-duty sheet metal floor stand, featuring 2 rollers which can hold the paper. Also with a paper basket for preventing the material from falling to the ground.

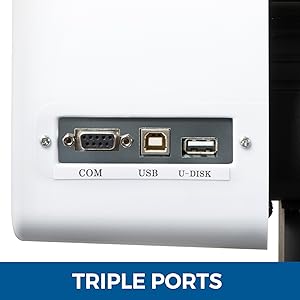

Triple Ports

COMPIM, USB and U-Disk are available. Standard USB 2.0 interface equipped. Flexible switch between USB and virtual serial ports. Supports offline processing with USB disk.

Package Content

1 x 53″ Cutter Plotter Machine Set 1 x Signmaster Software 1 x Floor Stand 2 x Cables (USB & Serial) 1 x Power Cord 1 x USB Flash Disk 1 x User Manual

Driving Method: Stepper Motor

Positioning: Manual

Carriage: Casting Pressure Carriage

Fill Light: LED Strip Light

Motherboard: ARM

Interface: Serial Port & USB 2.0 & U-Disk

Language: DM/PL, HP/GL

System: Windows XP/Vista/7/8/10(32& 64)

Software: Signmaster

Temperature: 5-35℃

Relative Humidity: 30%-50% Max. Paper Feed: 53.1″ (1350mm) Max. Cutter Width: 49.6″ (1260mm) Cutter Pressure: 20-500g Cutting Speed: 20-800mm/s Number of Pinch Rollers: 4 Memory: 4M Cutting Accuracy: +/-0.01mm (0.0004″)

Positioning
Semi-Automatic Automatic Automatic Automatic Automatic Manual
Max. Paper Feed
1350mm 1350mm 870mm 720mm 450mm 1350mm
Max. Cutter Width
1260mm 1260mm 780mm 630mm 345mm 1260mm
Number of Pinch Rollers
4 4 4 3 3 4
System
Windows XP/Vista/7/8/10/11(32& 64) Windows XP/Vista/7/8/10/11(32& 64) Windows XP/Vista/7/8/10/11(32& 64) Windows XP/Vista/7/8/10/11(32& 64) Windows XP/Vista/7/8/10/11(32& 64) Windows XP/Vista/7/8/10/11(32& 64)

Control Mode
USB & COM & Bluetooth USB & COM
Max Feed Width
53 in / 1350 mm 53 in / 1350 mm
Accurate Cutting
400 in /10 m 118 in / 3 m
Compatible System
Windows XP/VISTA/7/8/10/11 MAC/Windows XP/VISTA/7/8/10/11
Software
Signmaster Signcut & Signmaster

🎅[STRONG STABILITY] – Vinyl plotter with ARM motherboard and 4M high-speed cache memory. Double spring pinch-rollers and roughened steel rollers ensure that the paper feed will not deviate by long distance
🎅[DIGITAL CONTROL] – Cutting pressure with 20-500g adjustable, cutting speed with 20-800mm per second adjustable. Backlight LCD display for more intuitive operation

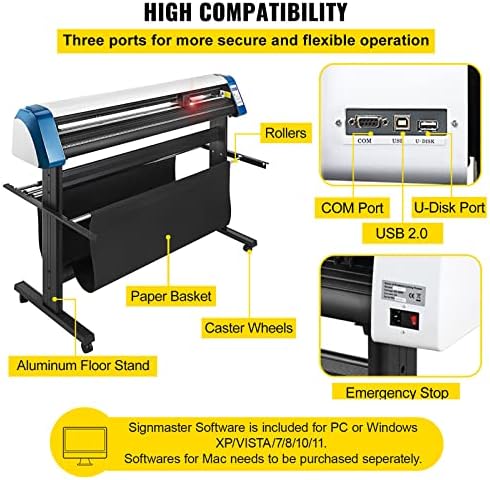

🎅[HIGH COMPATIBILITY] – Available with COMPIM, USB and U-Disk interface. DM/PL, HP/GL language. Works with your installed Fonts, including Dingbat/Wingding Fonts. Import various file formats, including SVG and PDF. NOT compatible with Mac system
🎅[WIDELY USED] – The vinyl cutting machine can be used in advertisement field, various decoration, handcraft, supplementary for heat transfer, label & sign making, etc
